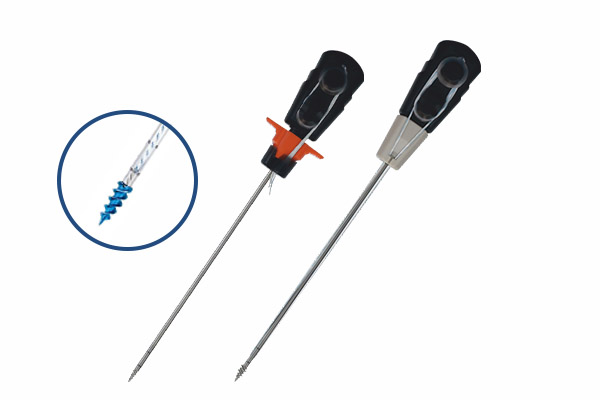

Ligament Anchors (Titanium Anchors)

  • Material : Ti 6Al-4V ELI Titanium Alloy.
  • Suture Material: USP- 2 UHMWPE (Ultra-high molecular weight polyethylene).
  • Sizes: 5.0 mm and 6.5 mm diameters.
  • Design:Fully-threaded, self-tapping anchor with wide threads and small core for optimal bone purchase.
  • Features:
    • Cancellous thread with small core diameter maximizes pull-out strength in cancellous or osteoporotic bone.
    • Two or three #2 fiber sutures in contrasting colors for easy identification and maximized soft tissue fixation.
    • Two suture eyelets to prevent suture lock.
    • Color-coded anchors.
    • Needle point tip for atraumatic hand insertion through soft tissue.
    • Independent fiber channels reduce suture binding.
    • Laser-etched markings on drivers for insertion depth and suture orientation.
  • Applications: Ideal for mini-open rotator cuff repair procedures.
  • Variants: Available with needles for ligament anchors.
Ordering Information
Description Ref. Code
Ø 5.0mm Double Loaded AR1705
Ø 5.0mm Double Loaded (With Tape) AR1755
Ø 6.5mm Double Loaded AR1765
Ø 5.0mm Double Loaded with Needle AR1805
Ø 5.0mm Double Loaded with Needle (With Tape) AR1855
Ø 6.5mm Double Loaded with Needle AR1865
